01
Automatic opening
The bowl opens automatically when the sensor detects a user.
Urinals · Coming soon

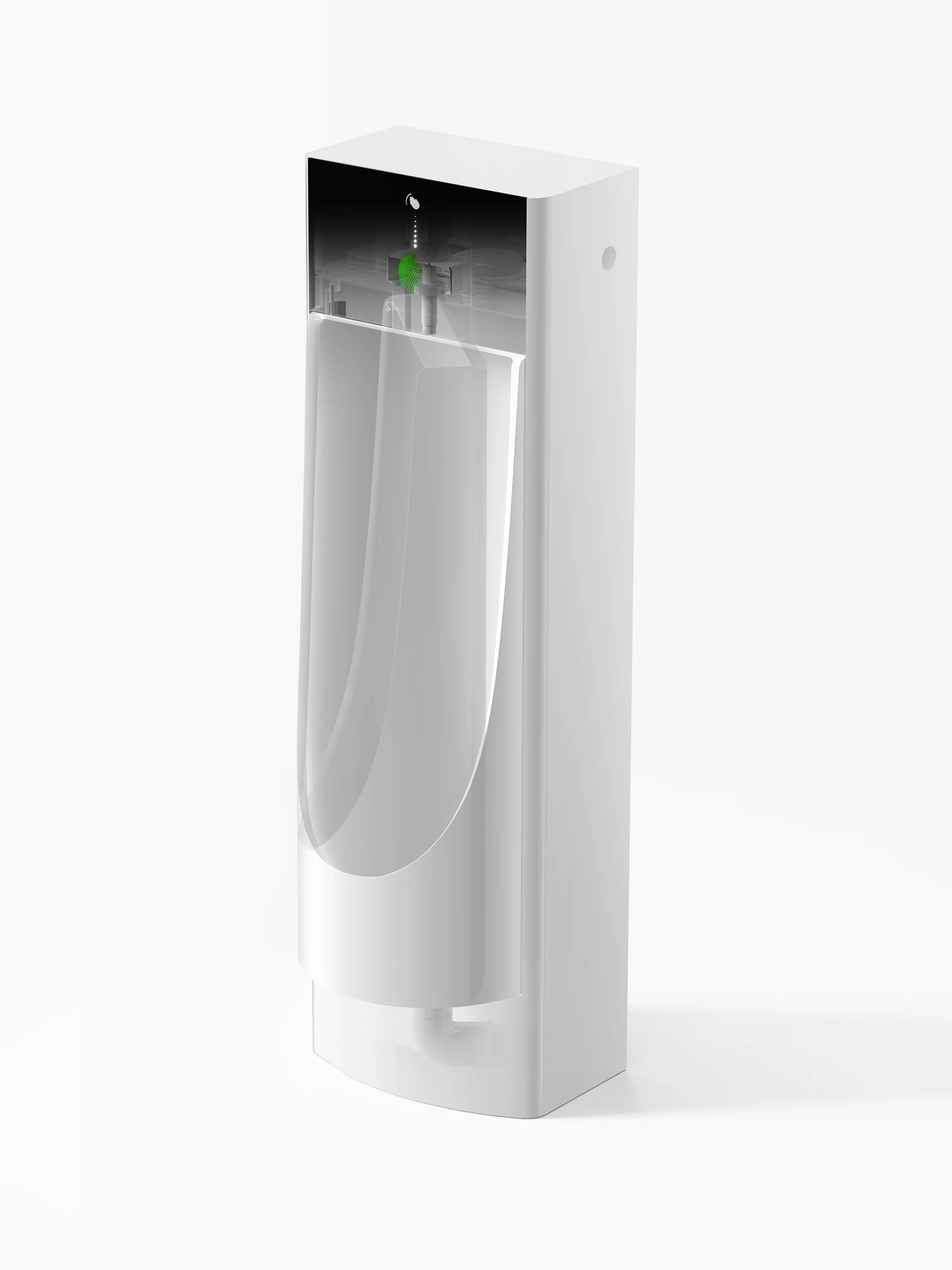

ESOO-SpinDao
Rotating urinal
SpinDao opens automatically as you approach. After use, the bowl rotates back into the wall, where its inner and outer surfaces are cleaned in an enclosed chamber.
Product rendering180°
Rotation angle
4 sec
Cleaning cycle
0.36 L
Water per cleaning cycle
22 cm
Recess depth

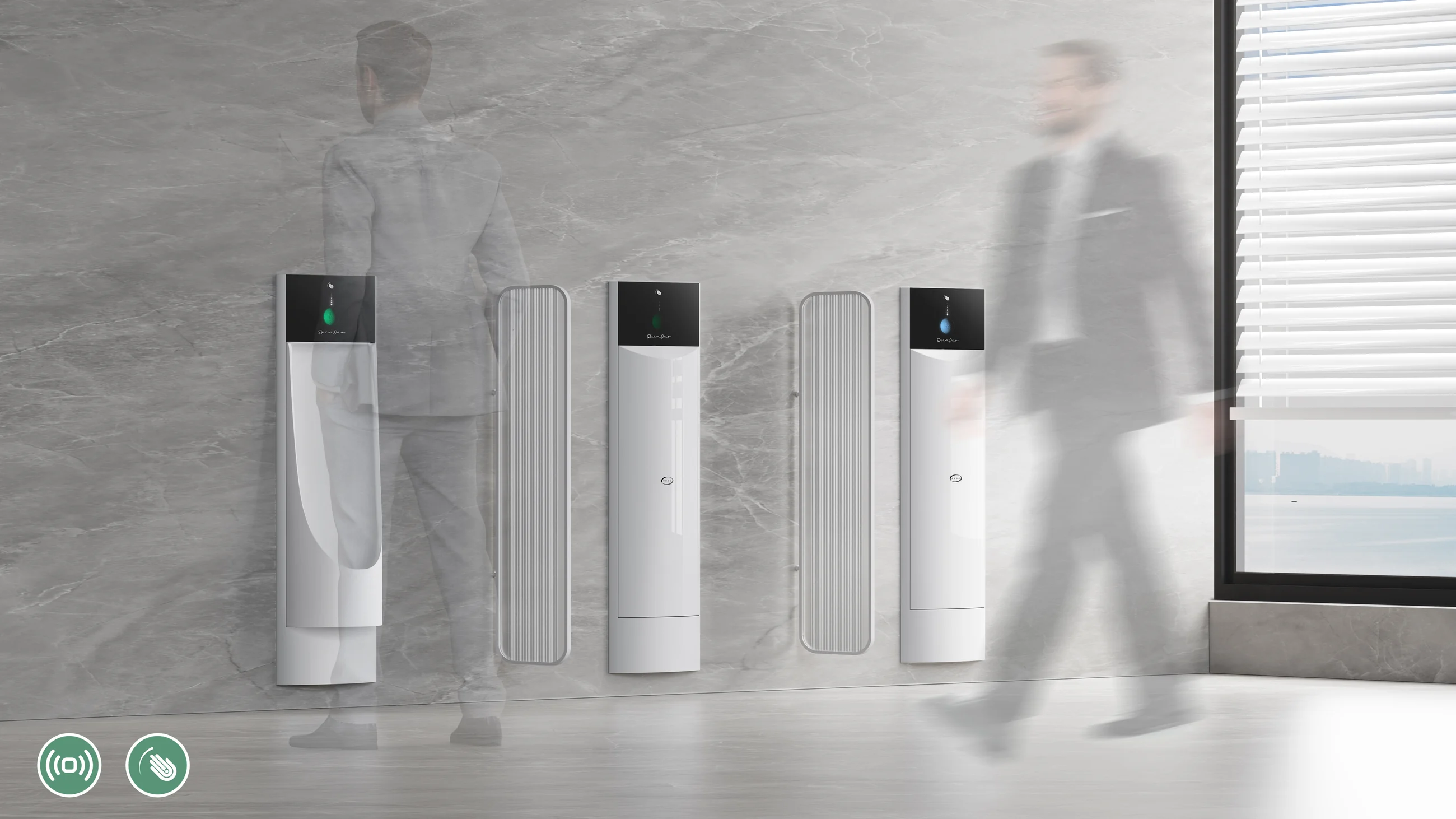

Operation
Sensor-operated opening and cleaning
Sensors control opening and closing, with no manual operation needed. Once the user leaves, cleaning, sterilisation and odour control take place behind the wall.
Product rendering02
In use
The bowl remains open, with status information on the front panel.
03
Retraction
After the user leaves, the bowl rotates 180 degrees back into the wall.
04
Cleaning
The bowl completes a four-second cleaning cycle inside the enclosed chamber.
Water use
0.36 L per cleaning cycle
The design uses 0.36 L of water to clean the inner and outer bowl surfaces in one cycle. Total consumption varies with the number of cycles.
Design figure from the official iF and Red Dot records and the ESOO product film; not an independent measurement from an operating installation.
Installation

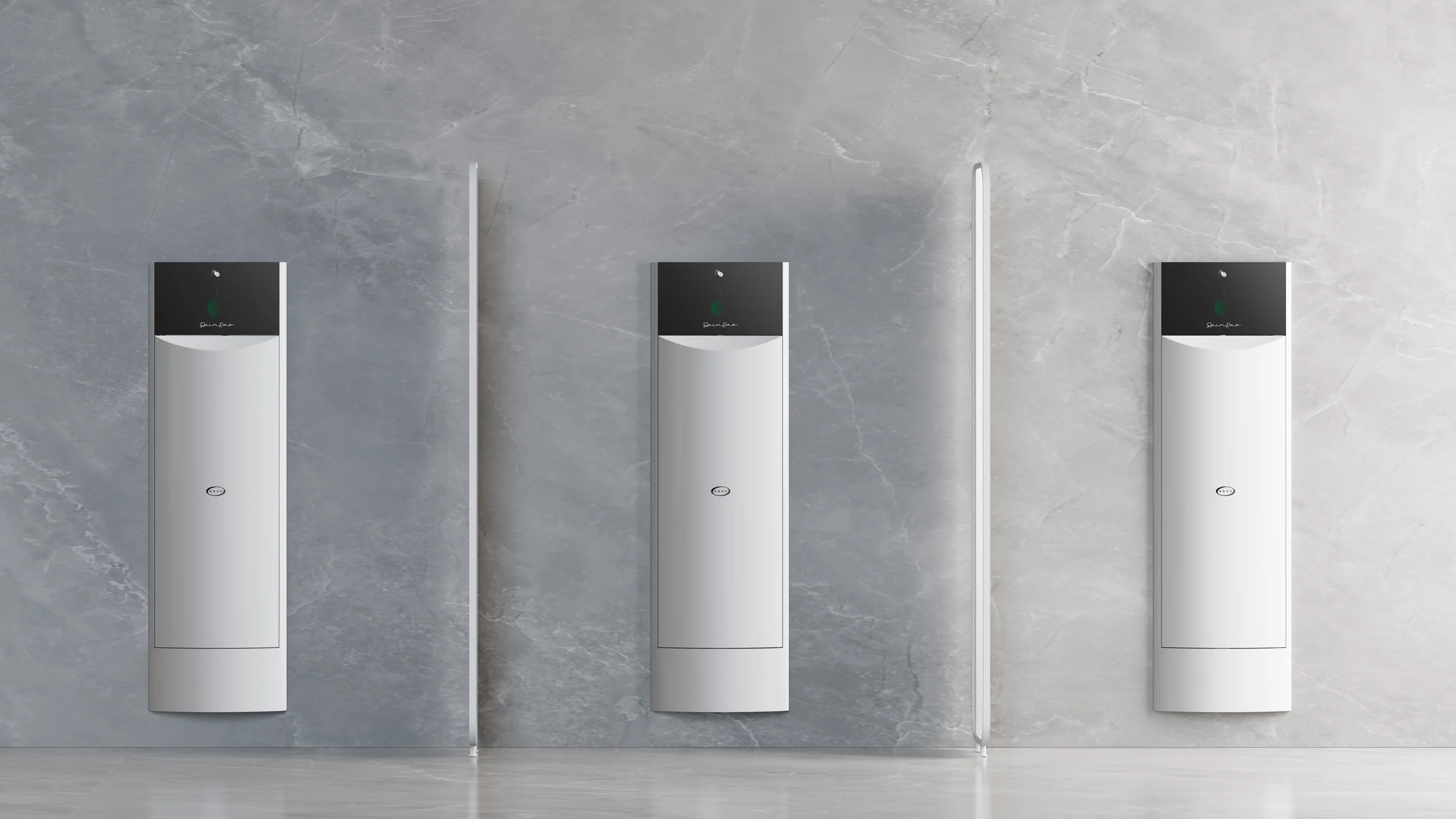

One unit or a row
Units can be arranged to suit the washroom layout, with each bowl retracting into the wall after use. Recessed installation requires space for the body and connections.
Product rendering
Product renderingCleaning system
Cleaned inside and out
Fine spray reaches both bowl surfaces, while a silicone wiper removes water from the exterior. Cleaning and sterilisation take place inside the enclosed chamber, with negative-pressure ventilation for odour control.
Product rendering

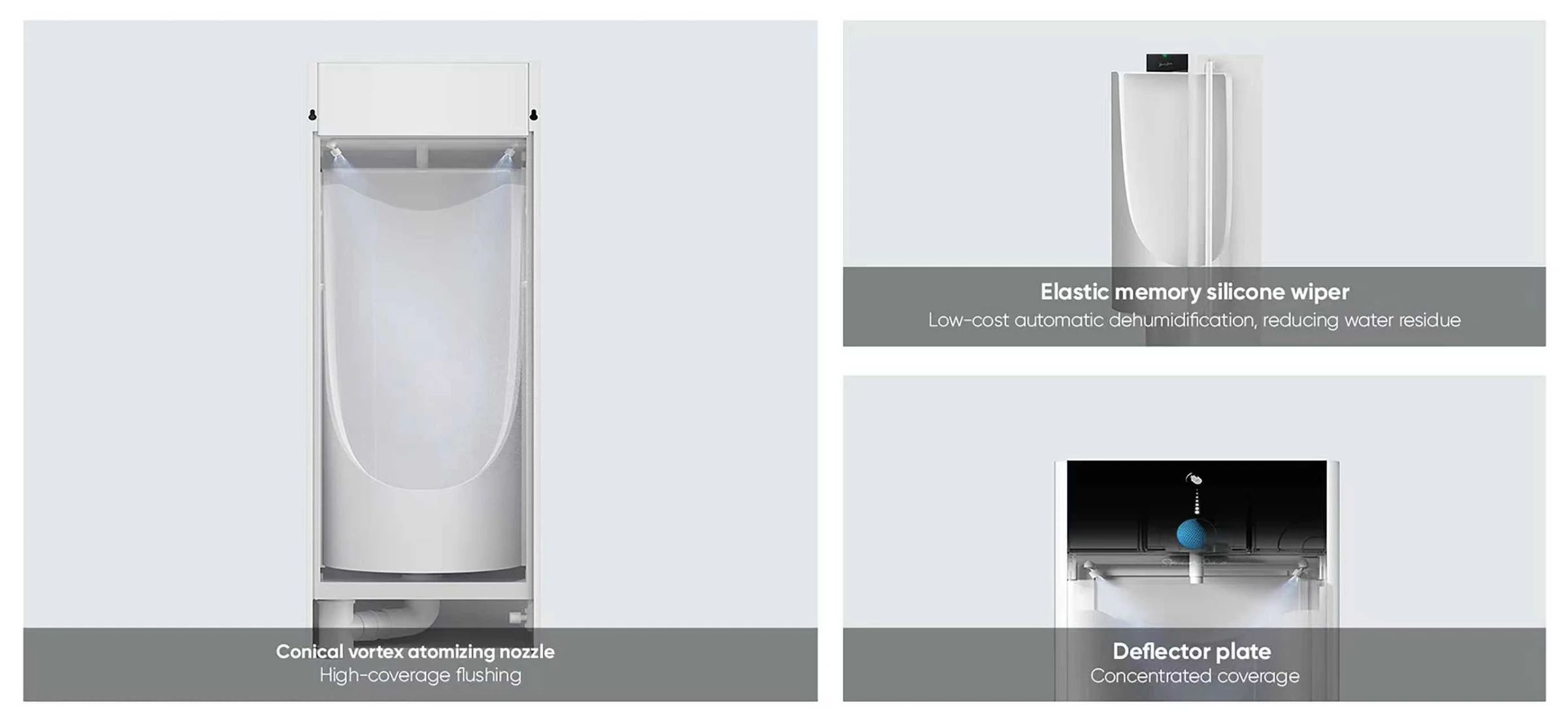

Product renderingConical vortex atomisation
Fine spray reaches the inner and outer surfaces of the bowl.
Silicone wiper
A flexible memory-silicone wiper removes water and residue from the outer surface.

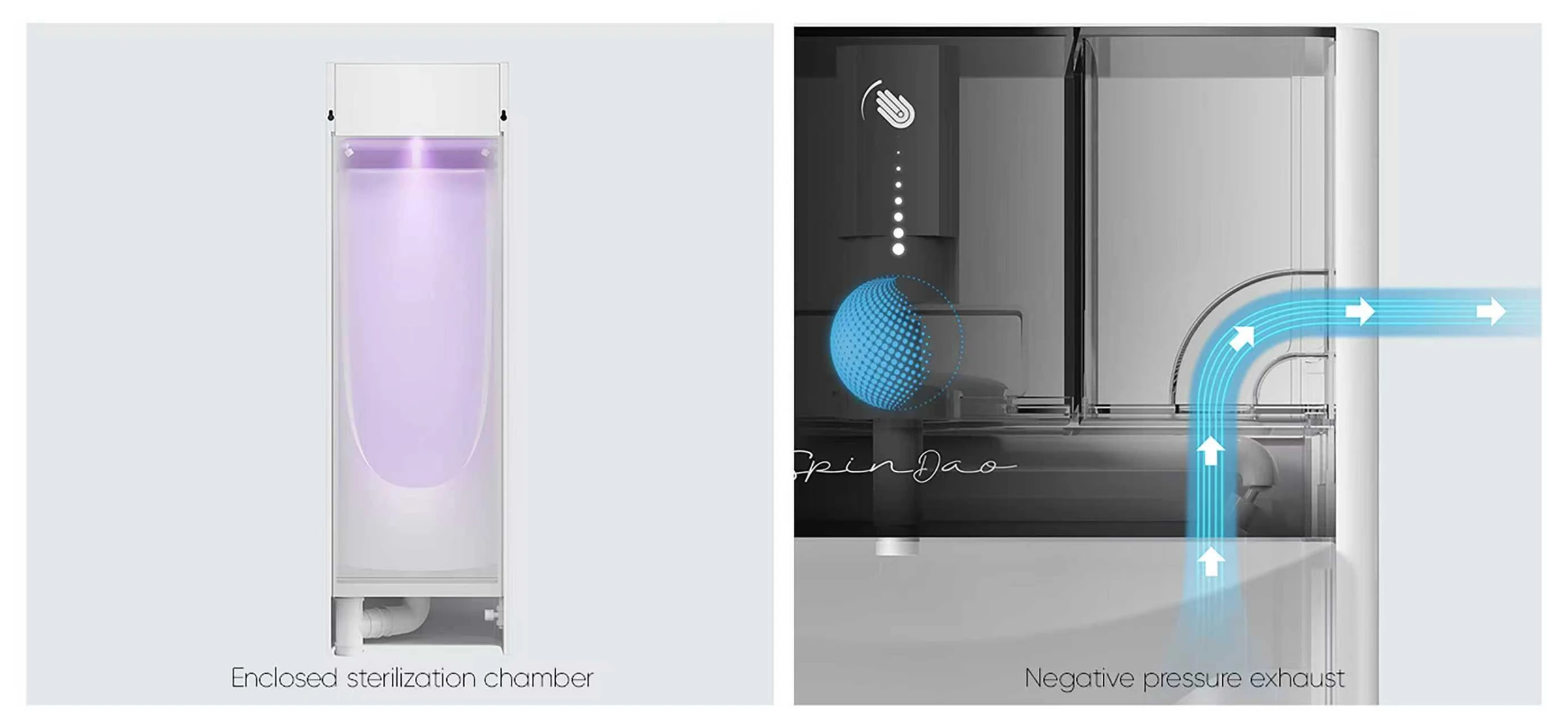

Enclosed sterilisation chamber
Cleaning and sterilisation begin once the bowl has retracted into the chamber.
Negative-pressure exhaust
Negative-pressure ventilation helps remove odours from the chamber.
Product film
Opening and cleaning demonstration
An excerpt from the product design film, showing the bowl opening, retracting and cleaning inside the enclosure.
Product renderingApplication

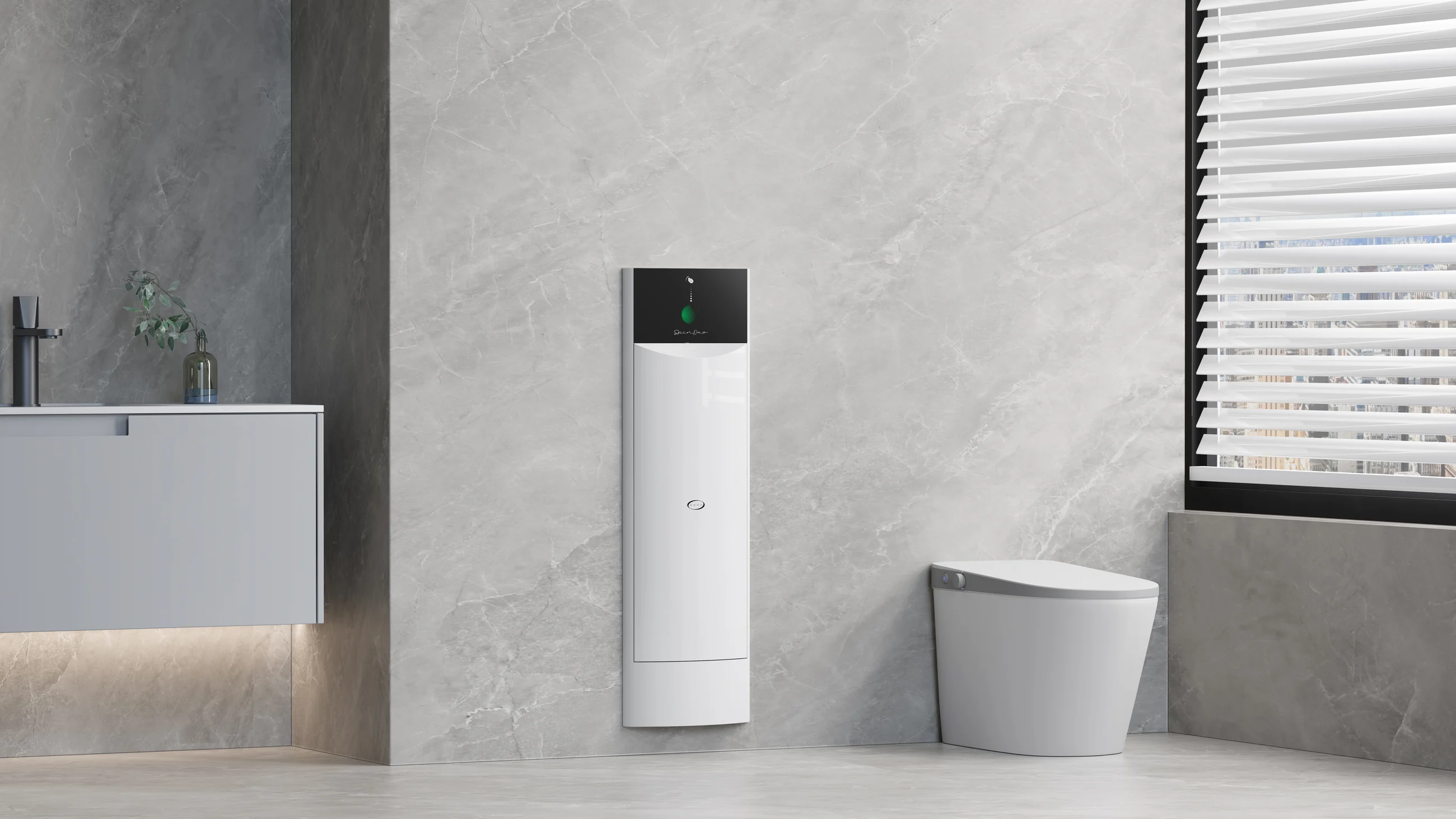

Public and private washrooms
Public washrooms can use rows of units, while private bathrooms can use an individual installation. Placement depends on the wall, plumbing and maintenance access.
Product information
Awards and design references
The official iF and Red Dot records identify the product, award year and manufacturer. The references below describe the award-winning design and its operation.
Content reviewed: September 5, 2026
2026 iF DESIGN AWARD, Product Design / Bath — official winner recordRed Dot Award: Product Design 2026 — official winner record
Red Dot Basic Label Licence 11-01118-2026PD — website use for ESOO-SpinDao throughout the product life cycle
ESOO-SpinDao product film excerpt and award-entry images — product design references
SpinDao product enquiries
SpinDao is coming soon. Our product team can discuss availability, installation requirements and the proposed configuration.
